Модель

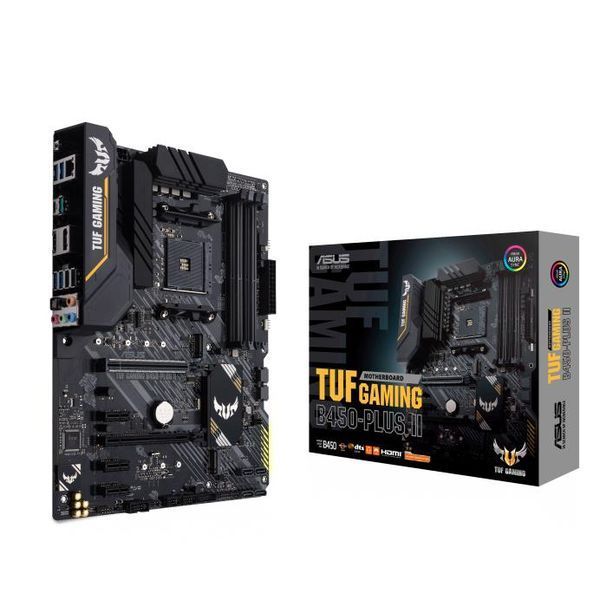

TUF GAMING B450-PLUS II
Процесор
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
* Refer to www.asus.com for CPU support list
Чипсет
AMD B450
Пам´ять
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Графічна система
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
1 x DisplayPort 1.2
1 x HDMI 2.0b
*Graphics specifications may vary between CPU types.
Підтримка конфігурацій з кількома відеокартами
Supports AMD CrossFireX™ Technology
Слоти розширення
3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode) *1
3 x PCIe 2.0 x1
Накопичувач
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
AMD Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
2 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
AMD B450 chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*3
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN
Realtek® L8200A
TUF LANGuard
Аудіо
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *4
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
Порти USB
Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Технології
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Precision control for stable power
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
- PC Cleaner
- Armoury Crate
- BIOS FlashBack™ Button
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS FlashBack™
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Armoury Crate
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise-Canceling Microphone
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4 core
- EZ update
- PC Cleaner
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS TUF PROTECTION
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
AURA Sync
- AURA RGB headers
Порти на задній панелі
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
5 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
Внутрішні інтерфейси і порти
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
2 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Аксесуари
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Віддалене керування
WOL by PME, PXE
Операційна система
Windows® 10 64-bit
Windows® 7 64-bit *5
Форм-фактор
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Примітки
*1 PCIE x16_2 will be unavailable when installing M.2 PCIE SSD in M.2_2 socket.
PCIe x16_2 will run x2 when installing devices in PCIe x1_1 or PCIe x1_2 slots.
PCIE x16_2 will run x4 when no devices installing in PCIE x1_1 and PCIE x1_2 slots.
*2 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
*3 PCIe x16_2, PCIe x1_1, and PCIe x1_2 slots will be unavailable when installing M.2 PCIe SSD in M.2_2 socket.
*4 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*5 Install an AMD Ryzen™ 2nd Generatione or Ryzen™ 1st Generation Processors to support Windows 7 64-bit operating system.
